Machine Features :

(1)

In an ordinary large centrifugal separator when the dissociation or separation of solution has been made the solid substances should be taken out from the top by hand.

(2)

This type may serve you not only to save expense and labor but also to increase your production ability.

(3)

This machine, however, is equipped with speed variable, semi-automatic and fully-auto operation which can be revolved by main motor, it can micro-adjustment for low, middle & high speed operation. When it is operated, first dehydrate the separated substances and accumulate them to the uttermost capacity, then adjust the main motor to suitable speed and through the speed reduce revolving the basket, and now operate the scraper, then the separated substances are dischaged automatically from the bottom sep by stop. The scraper can also be adjusted freely, up down, or thick and thin, and the scraping knife is made of high grade steel and is guaranteed to be lasting and durable.

Click for big picture

Click for big picture

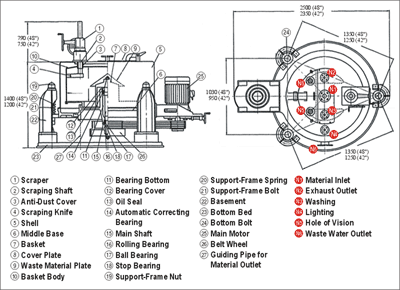

Structure Diagram of DS-BV-42 & DS-BV-48 :

Click for big picture

Driven by Inverter Motor :

Model Power
(HP)
Basket
£pDxH (mm)
Running
R.P.M.
Volume
(
l)
Centrifugal
Force (g)
Filter Area
(m2)
Outside Dimen. (mm) Kg
Length Width Heigh
DS-BS-42 HS 15 1,067 X 420 1,050 165 654 1.40 2,400 1,570 1,630 ~ 1,950 2,700
DS-BS-48 HS 25 1,220 X 500 950 252 615 1.91 2,500 1,800 1,820 ~ 2,140 3,850
DS-BS-60 HS 40 1,525 X 600 780 480 470 2.41 3,200 2,200 2,075 ~ 2,640 5,200

Speed Variable Motor :

Model Power
(HP)
Basket
£pDxH (mm)
Running
R.P.M.
Volume
(
l)
Centrifugal
Force (g)
Filter Area
(m2)
Outside Dimen. (mm) Kg
Length Width Heigh
DS-BV-42 VS 20 1,067 X 420 1,050 165 654 1.40 2,400 1,570 1,630 ~ 1,950 2,700
DS-BV-48 VS 30 1,220 X 500 950 252 615 1.91 2,500 1,800 1,820 ~ 2,140 3,850
DS-BV-60 VS 40 1,525 X 600 780 480 470 2.41 3,200 2,200 2,075 ~ 2,640 5,200

Remark: Besides of the above specifications & dimensions, other can be designed and produced by orders.
