Special
Type for Bio-Technical
(DS-STB-42) |
|
(1) |
Outer
casing open with manual, easy and no need any power to
open it. |
|
(2) |
Cover
for material feeding. |
|
(3) |
Special
type for bio-technical industry. |
|
|
|

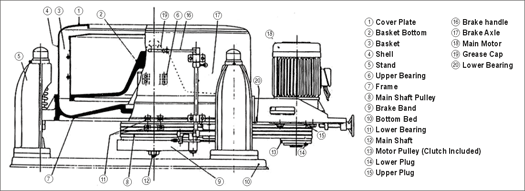

Structure
Diagram of DS-ST-49 :
|
 |
|
Specification
: |
| Model |
Power
(HP) |
Basket
£pDxH (mm) |
Running
R.P.M. |
Volume
(l) |
Centrifugal
Force (g) |
Filter
Area
(m2) |
Outside
Dimen. (mm) |
Kg |
| Length |
Width |
Heigh |
| DS-STB-16 |
DS-ST-16 |
1 |
380 X 216 |
2,000 |
6.5 |
849 |
0.25 |
1,054 |
720 |
508 |
250 |
| DS-STB-20 |
DS-ST-20 |
2 |
508 X 254 |
1,500 |
15.3 |
630 |
0.33 |
1,172 |
860 |
597 |
320 |
| DS-STB-25 |
DS-ST-25 |
3 |
635 X 300 |
1,350 |
29.3 |
639 |
0.59 |
1,442 |
1,004 |
673 |
700 |
| DS-STB-30 |
DS-ST-30 |
5 |
762 X 300 |
1,200 |
63 |
614 |
0.71 |
1,680 |
1,316 |
825 |
1,250 |
| DS-STB-36 |
DS-ST-36 |
7.5 |
915 X 350 |
1,100 |
86 |
620 |
1.00 |
1,920 |
1,500 |
945 |
1,600 |
| DS-STB-42 |
DS-ST-42 |
10 |
1,067 X 360 |
900 |
140 |
481 |
1.20 |
2,100 |
1,675 |
1,050 |
1,800 |
| DS-STB-48 |
DS-ST-48 |
15 |
1,220 X 420 |
860 |
180 |
508 |
1.60 |
2,500 |
1,700 |
1,095 |
2,300 |
| DS-STB-49 |
DS-ST-49 |
25 |
1,240 X 700 |
800 |
374 |
442 |
2.73 |
2,500 |
1,700 |
1,375 |
2,700 |
| DS-STB-60 |
DS-ST-60 |
VS 30 |
1,524 X 700 |
760 |
730 |
484 |
3.35 |
3,200 |
2,200 |
1,548 |
5,200 |
| DS-STB-63 |
DS-ST-63 |
VS 30 |
1,600 X
950 |
700 |
1,164 |
426 |
4.78 |
3,200 |
2,200 |
1,750 |
5,700 |
|
|
Remark:
Besides of the above specifications & dimensions, other can
be designed and produced by orders. |
|
|
|
